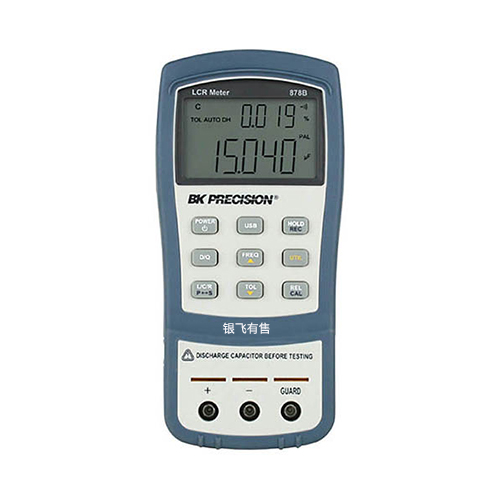

878b、879b和880系列手持式的数字电桥测量仪，配置了40000计数搭配双显示的一款手持LCR仪表。879B型可以联系银飞选购3年保修。B&K Precision品牌878B、879B和88040000计数的手持式数字电桥测量仪能够快速准确地测量电感、电容和电阻。879B和880还测量阻抗、θ、DCR和ESR。此外，B&K Precision品牌880提供了通常仅在工作台LCR仪表中才能找到的功能，878b、879b和880系列手持式的数字电桥配备了例如4端配置、基本测量精度高达0.1%、测试频率高达100 kHz、可选测试信号电平和测量速率。

B&K Precision品牌878B、879B和88040000计数的手持式数字电桥测量仪还包括方便的功能，如数据保持、很小/较大/平均记录、公差排序和相对模式。快速自动测距和快速测量配置，如测量参数和测试频率的选择，使这些仪表操作非常简单。测量数据可以使用提供的数据记录软件或从自定义程序发送的SCPI命令，通过仪表的迷你USB接口连续传输到PC。



手持式数字电桥测量仪特点和优点

主显示器上的40000计数分辨率和辅助显示器上的10000计数分辨率

L、C、R和Z（仅限B&K Precision品牌879B和880）主要测量值

二次参数d、q、θ、esr（仅879b&880的θ/esr）和dcr（仅880）的自动计算

精度高达0.1%，可选测试频率高达100 kHz（仅880）

快速自动量程设计，用于快速、简单的部件测量

自动部件类型识别和测量类型选择的自动检测模式（仅880）

相对模式

可见和可听公差模式

背光显示屏（仅限B&K Precision品牌879B和880）

数据保持和很小/较大/平均记录

USB（虚拟COM）接口

与scpi兼容的远程通信命令

数据记录和前面板模拟软件可免费下载

可配置的通电状态

包括所有常用配件（仅880）

Model	Measurements	Test Frequency
878B	L, C, R, D, Q	120 Hz, 1 kHz
879B	L, C, R, Z, D, Q, θ, ESR	100 Hz, 120 Hz, 1 kHz, 10 kHz
880	L, C, R, Z, D, Q, θ, ESR, DCR	100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz

手持式数字电桥测量仪应用

无源元件故障排除

电子装配

质量控制（部件分类）

订购信息：879B和880型包括一个120伏交流电适配器作为标准附件。要包括230伏交流电适配器，请订购879B-220伏或880-220伏型号。交流电适配器是878B的可选配件。

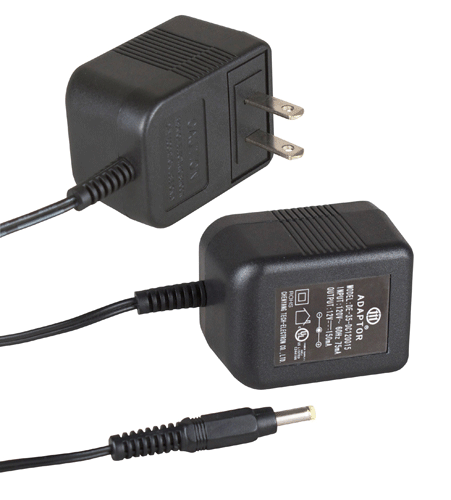

Model BE800，120VAC Wall Adapter with output of 12VDC/150mA, Center +

120VAC Wall adapter used as a battery eliminator to power compatible instruments without using battery power. Output plug dimensions are: length: 10.5mm, outer diameter: 4mm, inner diameter: 1.5mm。One is included with the model 879B

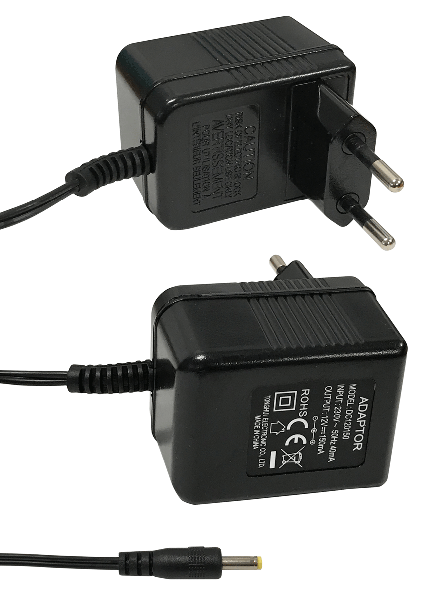

Model BE802，230VAC European Two Prong Wall Adapter with output of 12VDC/150mA, Center +

230VAC Wall adapter used as a battery eliminator to power compatible instruments without using battery power. Output plug dimensions are: length: 10.5mm, outer diameter: 4mm, inner diameter: 1.5mm

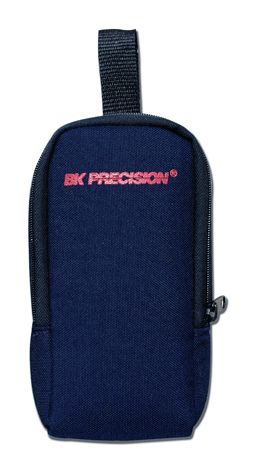

Model LC29B，DMM Carrying Case

Light weight, durable Cordura nylon Protects your instruments

Made in the U.S.A.

Room to hold your test leads

Approximate Internal Dimensions: 4"x2.5"x8" (102x64x203mm)

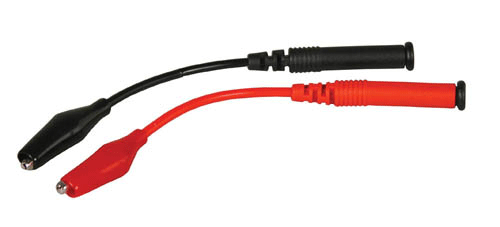

Model TL LCR，Test leads for handheld LCR meters (Sheathed)

Includes one red and one black lead

5" Long sheathed banana to alligator clip

Short length allows for accurate component measurements

Used with LCR Meters and Capacitance Meters

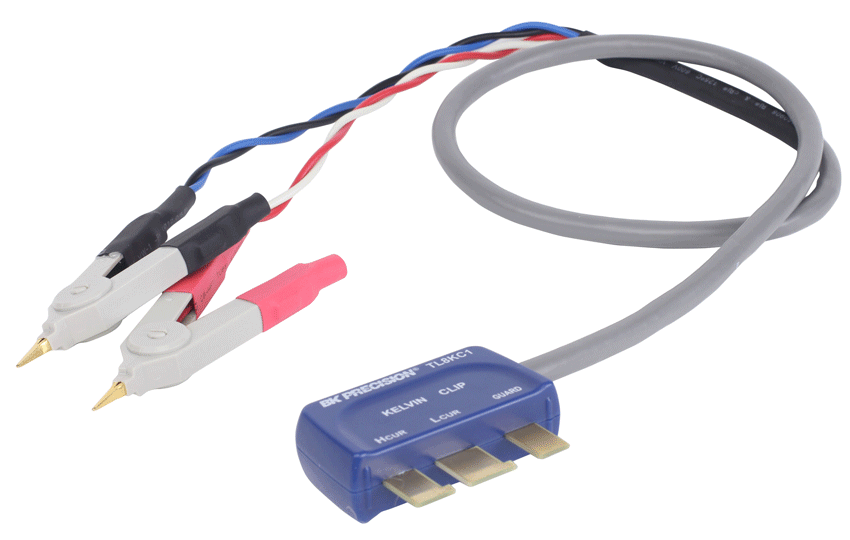

Model TL8KC1，4 Terminal shielded Kelvin test lead

The TL8KC1 is a Kelvin test lead that is useful when measuring leaded capacitors, inductors, and resistors. Cable length is approximately 16 inches (40.64 cm). When used with the 880, the guarded lead reduces the effect of lead impedances and contact resistance thus minimizing measurement errors and improving accuracy especially in the lower impedance range. The TL8KC1 is an included accessory with the model 880.

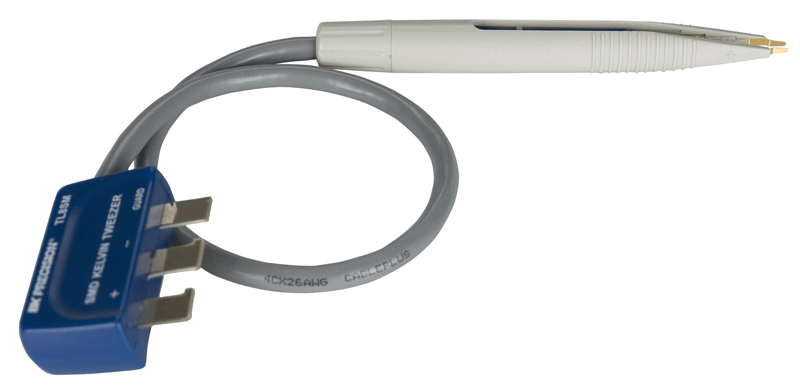

SMD Tweezer Probe

Model TL8SM

The TL8SM is a tweezer probe that is useful when measuring surface mount capacitors, inductors, and resistors. Cable length is approximately 16 inches (40.64 cm). When used with the 880, the guarded lead reduces the effect of lead impedances and contact resistance thus minimizing measurement errors and improving accuracy especially in the lower impedance range. The TL8SM is an included accessory with the model 880.
