Features and Benefits:

• Proven Drexelbrook level solution for the most common to the most challenging applications
• The most versatile level technology for liquids, slurries, interface and granules measurement
• Over 125 probe types for a wide array of applications, flex, rigid, wetted materials and process connections
• 2-wire, 4-20mA loop transmitter with the widely accepted digital HART protocol
• Process temperature from cryogenic to 1000°F (537°C)
• Process pressure from vacuum to 10,000 PSI (690 BAR)
• Measurement span as short as 1” (25mm) to 800 ft (244m), no dead zone or blocked measurement areas
• Proven Cote-Shield™ technology that ignores coating build-up on the probe
• Immune to vapor, dust and foam interference
• Immune to tank obstructions such as nozzles, ladders, pipes and agitators
• Low cost of ownership, no maintenance, and no moving parts to wear out
• Stable, repeatable, and accurate measurement within 0.25% of range
• Built-in isolation and surge protection for increased reliability
• Easy one-time calibration, configure it once and go
• Free PC-based HRTWIN™ configuration software for initial setup from anywhere on the loop or a handheld HART®communicator can be used
• Standard user friendly push-button LCD display for configuration and monitoring
• Integral and remote installation. The transmitter can be integrated with the probe, or for harsh environmental conditions it can be installed remotely away from the probe/vessel
• Worldwide approvals: FM, FMc, ATEX, IECEx and CE mark
• Hazardous location approvals, Intrinsic Safety (IS) and Explosion Proof/Flameproof for Class I, Div I, and Zone 0 installations
• Fully backward compatible with Drexelbrook’s leading products such as Universal III, Universal Lite and RCT series
• 50+ years of Drexelbrook applications knowledge that ensures the right solution for your application

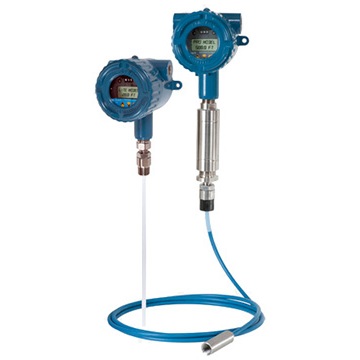

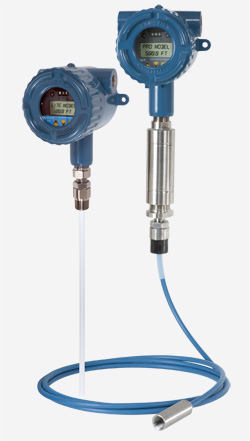

Overview The Universal IV™ Series is the fourth generation RF continuous system built on Drexelbrook’s 50 years of experience in level measurement. The product is backward compatible with the industry standard Universal III™, Univeral Lite™, Universal II™ and RCT™ Series and is the ideal solution for a wide array of applications. A few enhancements to the Universal IV Series include worldwide hazardous location approval, standard display/keypad, autoranging capabilities and state of the art stable and accurate measurement. Pro Model The Universal IV™ Pro model integrates the RF Admittance technology pioneered by Drexelbrook with the versatility of Cote-Shield™ technology that ignores coatings on the probe and measurement span of 1" to 800'. The Pro is compatible with a vast array of applications: conductive, insulating, and heavy or light coating. Lite Model The Universal IV™ Lite model is the entry level RF Capacitance measurement system without Cote-Shield™ capabilities. Lite models can be used in non-coating conductive liquids and insulated coating applications where Cote-Shield™ is not required. In addition, the Lite model offers a measurement range up to 20' typically.
